MICROSCOPE E3 B11 7x60x zome

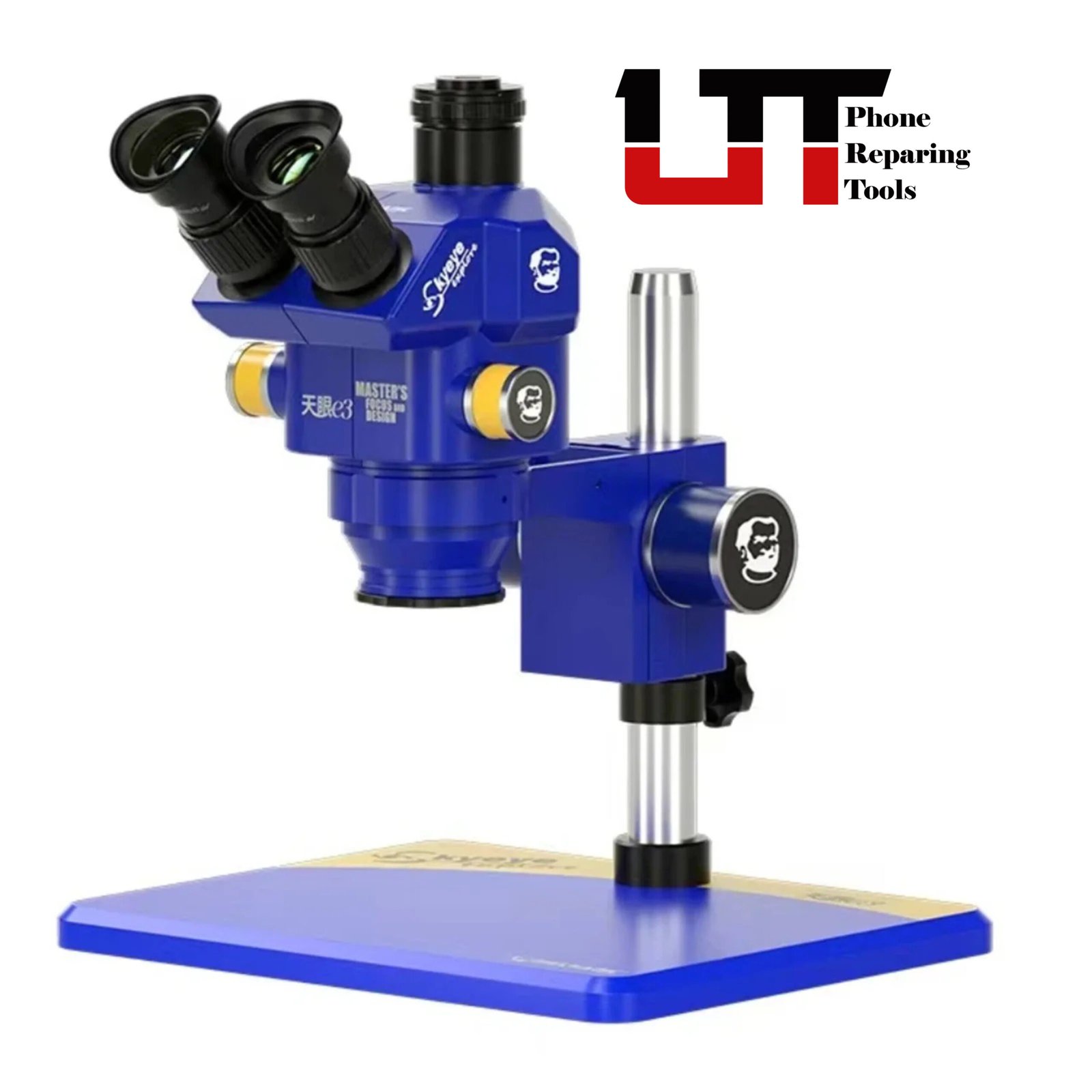

iProGadgets Repair Tools Mechanic E3-B11 7x-60x Simul-Focal Trinocular Stereo Zoom Microscope for Microscopic Inspection Picturing Video Recording

Features:

• High-definition optical objective, precision craftsmanship,high-definition coated objective lens, pure copper lens barrel, no glare, clear picture no neglect every details

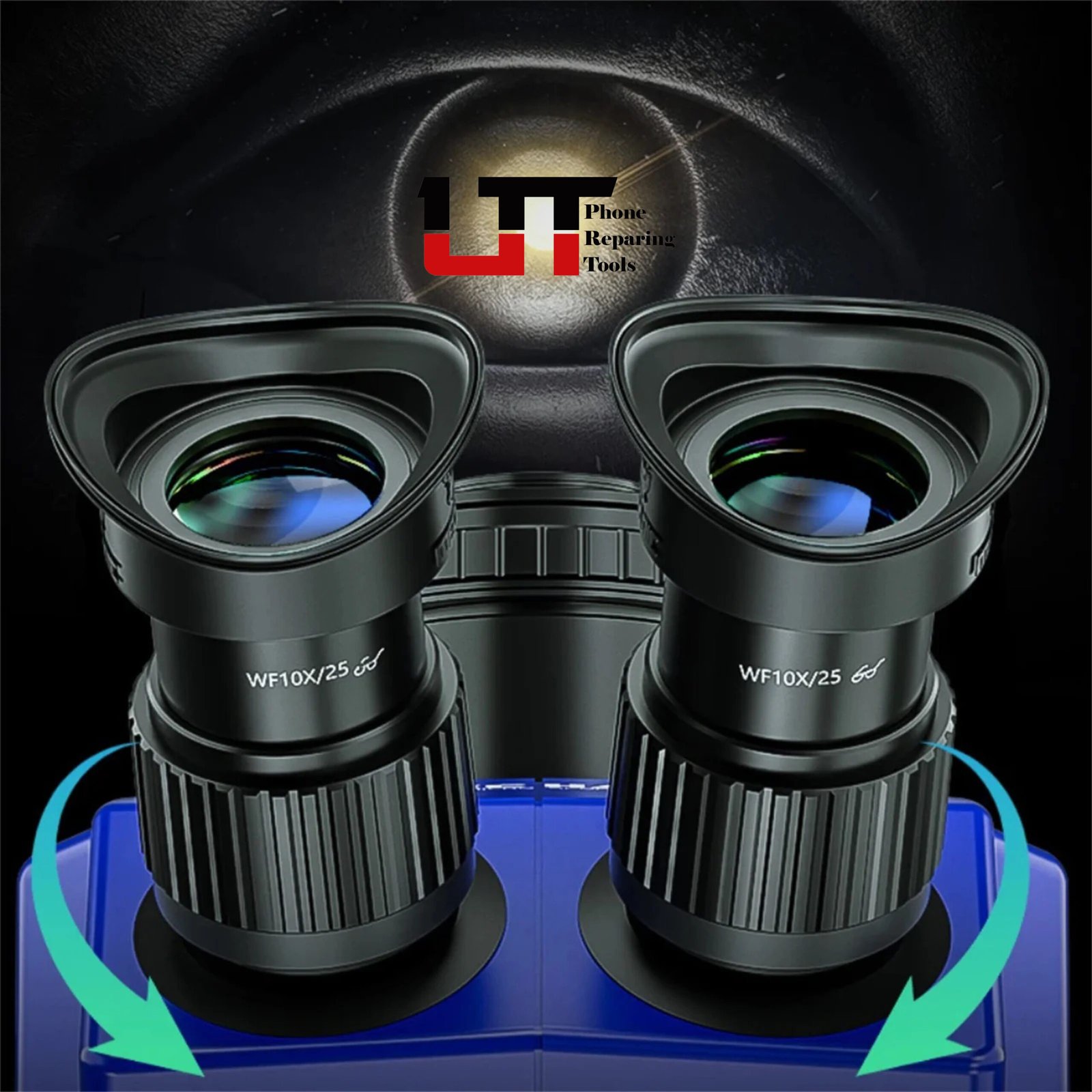

• High field of view, wide-angle eyepiece, standard WF10X/25MM, wide-angle eyepiece with high eye point, easy to observe with eyeglasses
• Adjustable binocular refraction, adjustable diopter ±5DP for both eyes, easier binocular viewing
• Big and bigger, 8.6:1 magnification, 7-60X continuous zoom optical system, large magnification continuous zoom, sharp and undistorted images, very high clarity correct focusing
• It has focus knob, sharp details, focusing gear bar is made of metal, durable, with precise magnification, sharpens the image
• CTV 2/5 adapter, sharper imaging than regular CTV interfaces, wider field of view, no dark corners

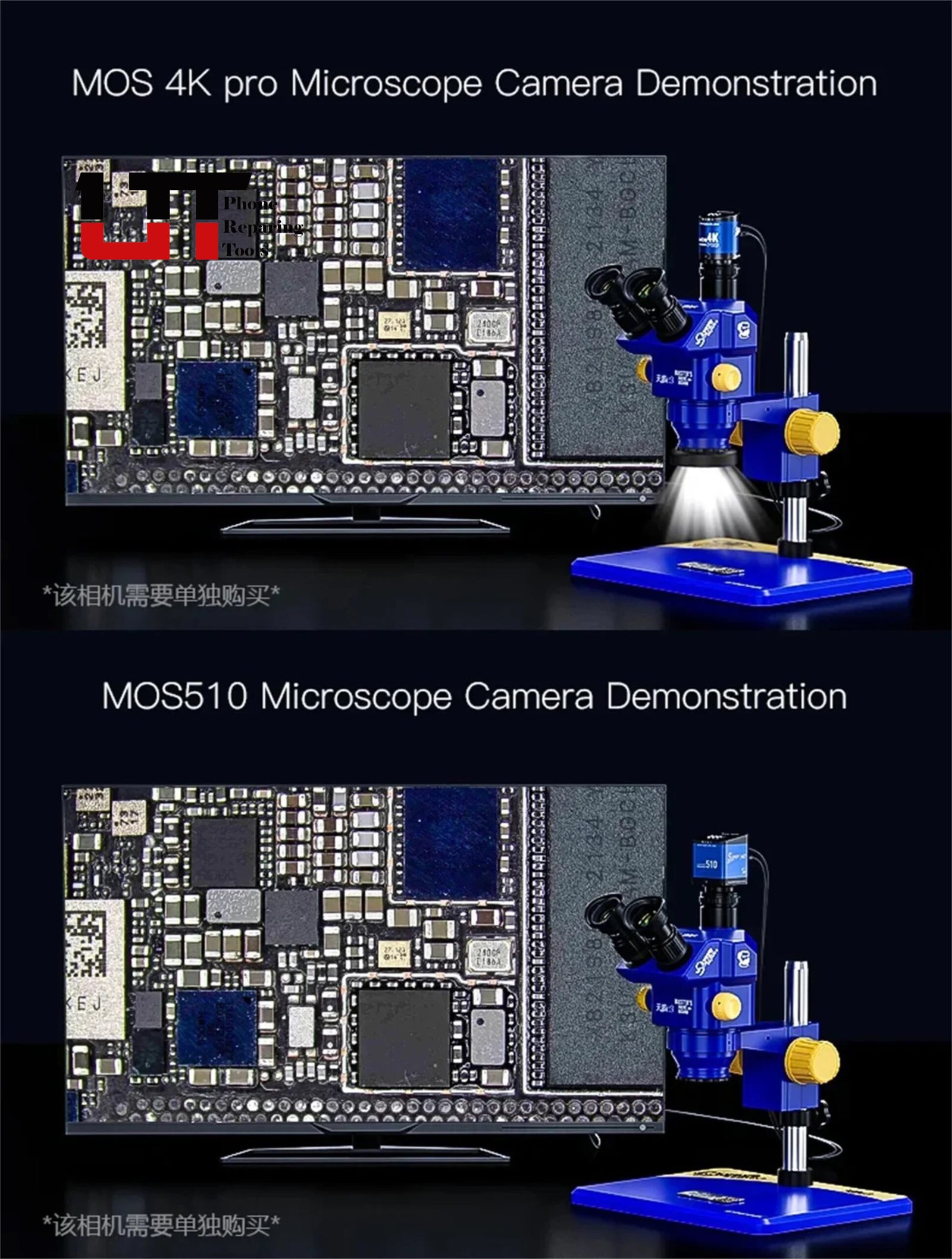

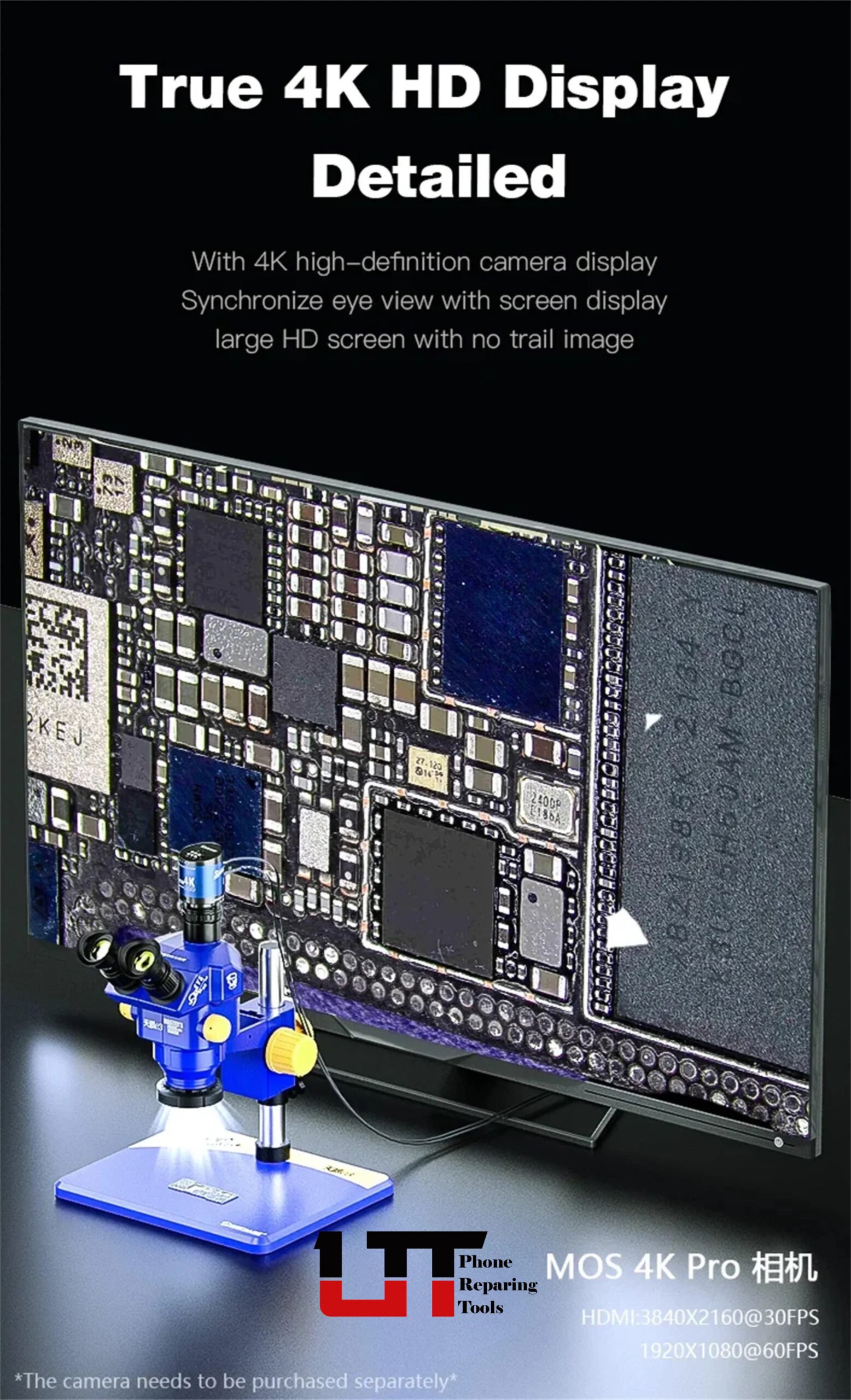

• It can be used with a 4K high-definition camera display, synchronized eye view with screen display, and large HD screen with no trail image
• High and bigger, the working distance is 120mm, and 360° rotary adjustment, more room to operate
• Versatile: Mobile phone motherboard/circuit board/resistors etc; Precision watches/inlaid crystals/micro-carved walnuts etc; Tiny creatures/plants etc; Teeth/glasses/ears etc

Specification:

• Viewing Head: 45° tilt, 360°swivel, pupil distance 54-76mm bilateral vision adjustment +5 diopters
• Non-Adjustable Goggles: Standard configuration: WF10X25MM, high eye point wide angle type eyepiece; Provides convenience for observers wearing eyeglasses
• Optional Eyepieces: WF15X/15mm, WF20X/10mm, WF25X/9mm
• Objective: 0.7X-6X continuous zoom, objective zoom ratio 8.6:1
• Auxiliary Objective: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For option
• Magnifying Power: 7X-60X, optional eyepieces and auxiliary objectives can be extended to 3.5X-300X, continuous magnification
• Working Distance: 120mm
• Focusing Mechanism: A1 focusing bracket, handwheel adjustable, lift range 50mm
• Work Platform: 320*260mm
• Foundation: B11 Column Large Flat Base; Other base options available, see base series diagrams
• Trinocular Interface: With the trinocular rod and CTV can be connected to the camera, CCD
• Illumination: L65 LED ring lights

Package includes:

• 1 x Microscope Body
• 1 x Microscope Focusing Arm
• 1 x Goggles
• 2 x Eyepieces (WF10X/25)
• 1 x Dustproof Lens
• 1 x L65 Ring Light
• 1 x Smoke Exhaust Fan
• 1 x MCN CTV Adapter
• 1 x Limiter
• 1 x Base
